Fe-based NanocrystallineRibbon
Fe-based Nanocrystalline Ribbons
Model：1K107, 1k107b
Size：customized
Classify：Fe-based NanocrystallineRibbon
Date：2021-09-29 11:35

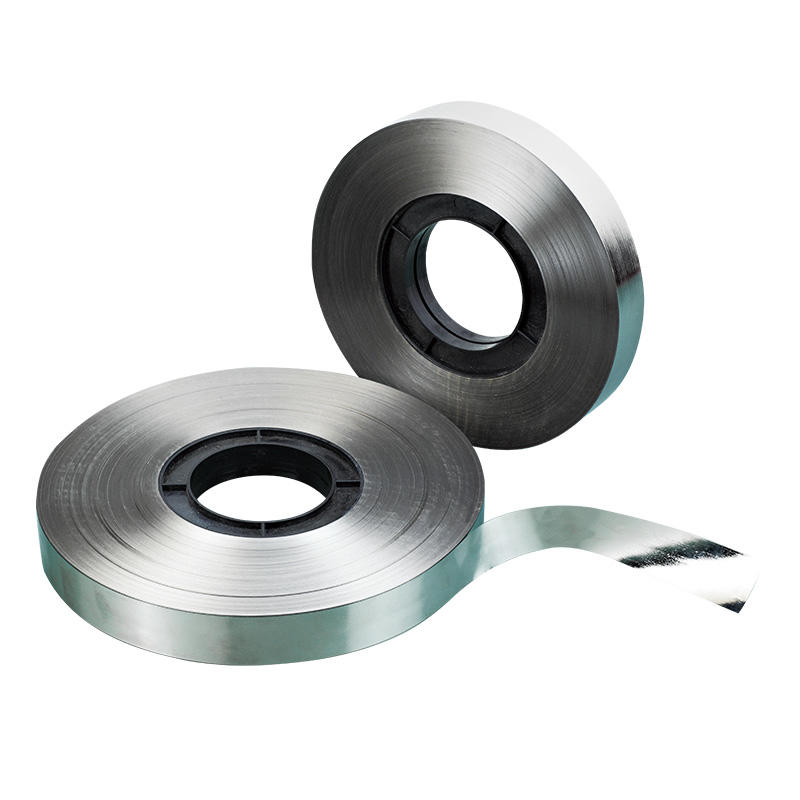

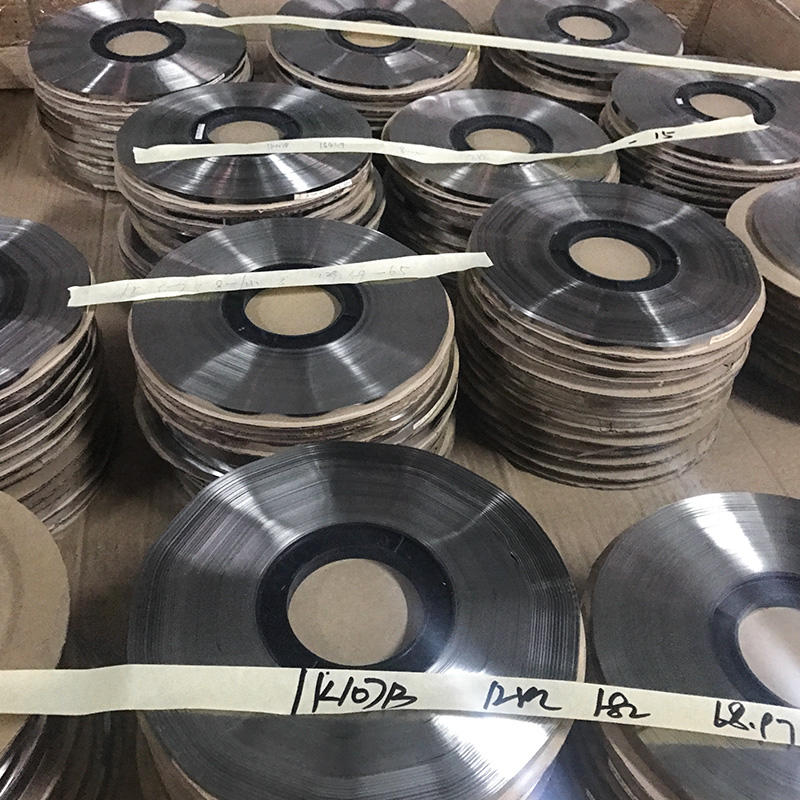

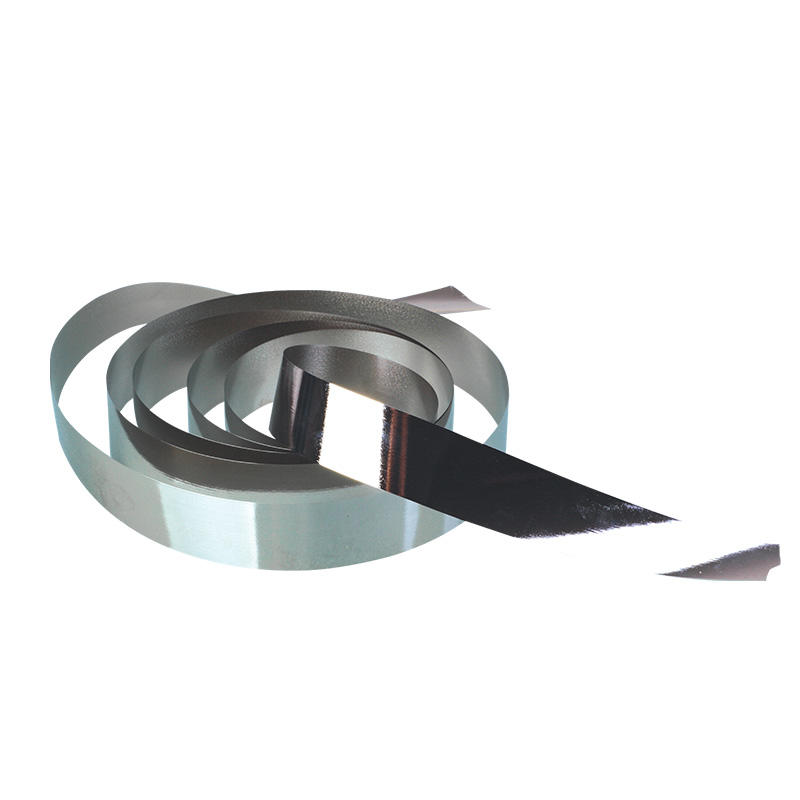

Detail：Nanocrystalline Ribbon is a new type of Fe-based soft magnetic materials. Traditionally, metal crystalline materials with larger crystal grains were considered to have better magnetic characteristics. However, Nanocrystalline is invented with extremel...
|
Nanocrystalline ribbon 1K107 Properties |
|||
|
Saturate induction / Bs (T) |
1.25 |
Magnetostriction / λs |
2.0x10⁻⁶ |
|
Curie temperature (℃) |
570 |
Density ρ (g/cm³) |
7.2 |
|
Crystallization (℃) |
500 |
Resistivity δ (μΩNaN) |
130 |
|
Hardness / Hv |
880 |
Thickness (μm) |
28~35 |
|
Thickness (mm) |
0.018-0.025 |
|
Stack factor σ |
＞0.8 |
|
Magnetic induction B800/T |
≥1.2 |
|
Coercivity / Hc （A/m） |
≤1.6 |
|
Core loss P0.5T/20K/(W/kg) |
≤25 |
|
Core loss P0.3T/100K/(W/kg) |
≤100 |
|
Permeability μ （1kHz） |
≥80000 |
|
Permeability μ （10kHz） |
≥60000 |
|
Permeability μ （100kHz） |
≥10000 |
|
Curie temperature （℃） |
570 |
|
Operating temperature （℃） |
‐50~120 |
|
Magnetostriction / λs |
＜2.0x10-6 |
|
Item |
Width （mm） |
Thickness（μm） |
|
1 |
5 |
28-35 |
|
2 |
8 |
28-35 |
|
3 |
10 |
28-35 |
|
4 |
15 |
28-35 |
|
5 |
20 |
28-35 |
|
6 |
25 |
28-35 |
|
7 |
30 |
28-35 |
|
8 |
35 |
28-35 |
|
9 |
40 |
28-35 |
|
Item |
Width （mm） |
Thickness（μm） |
|
1 |
3 |
18-25 |
|
2 |
3.2 |
18-25 |
|
3 |
3.5 |
18-25 |
|
4 |
4.5 |
18-25 |
|
5 |
5 |
18-25 |
|
6 |
6 |
18-25 |
|
7 |
6.5 |
18-25 |
|
8 |
8 |
18-25 |
|
9 |
10 |
18-25 |
|
10 |
15 |
18-25 |
|
11 |
20 |
18-25 |
|
12 |
25 |
18-25 |
|
13 |
30 |
18-25 |
